  • Brake Install

    Here are pics from the front bake install i just did

    Look before the install

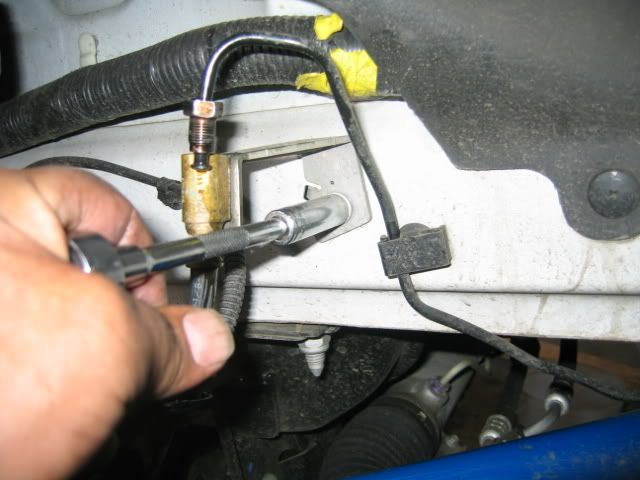

    removed brake line brackets. New one in kit

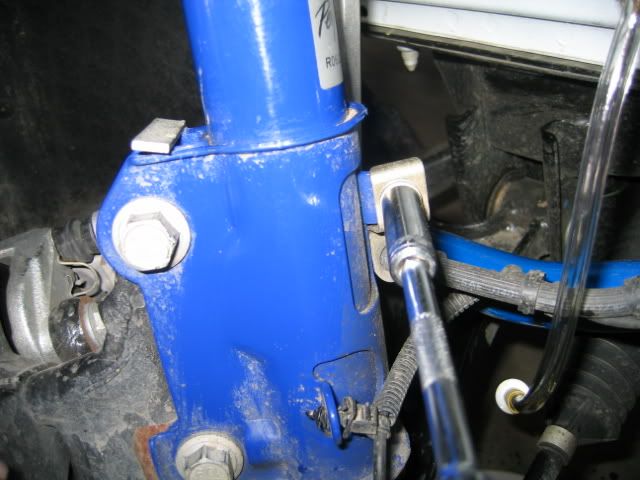

    I also put a clear hose over brake line to drip in pail. brake fluid will eat the paint off the sudpension parts

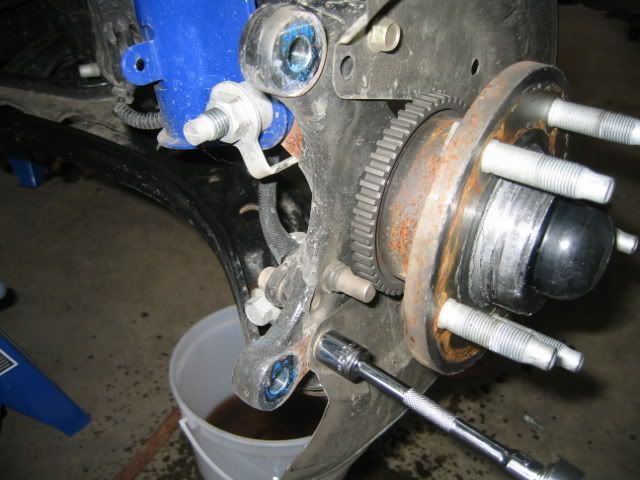

    removed rotor and caliper aseembly

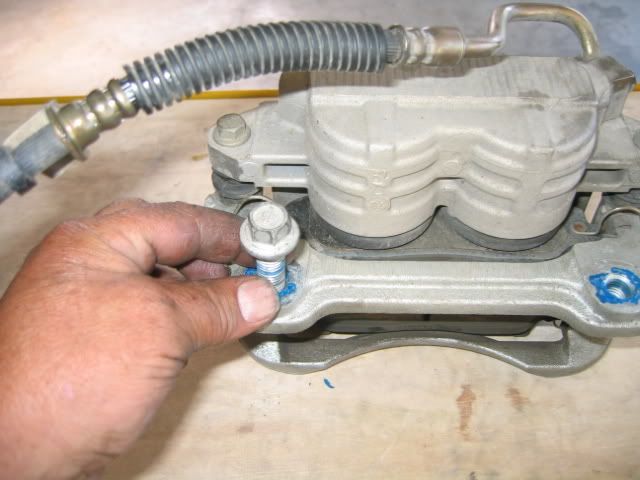

    bolts that held stock caliper on used again on new one

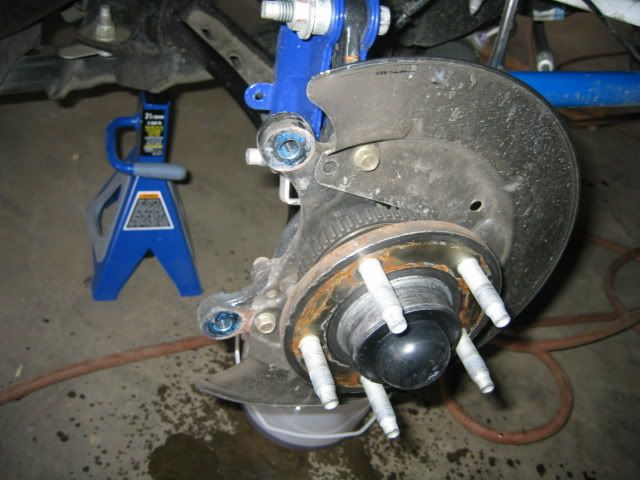

    removed stock backing plate


    here are the stock and new rotors quite a difference in size

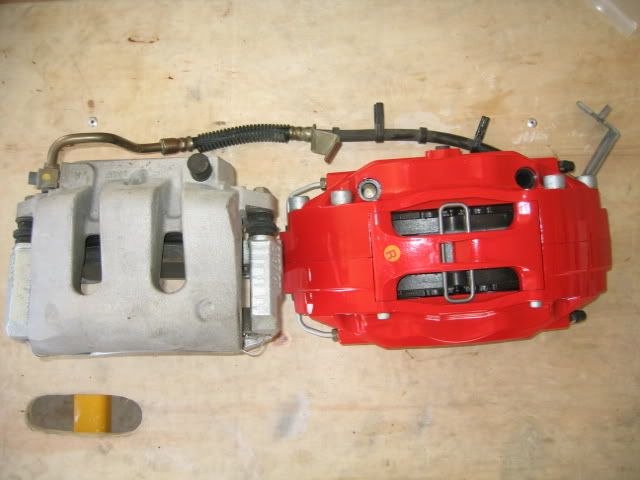

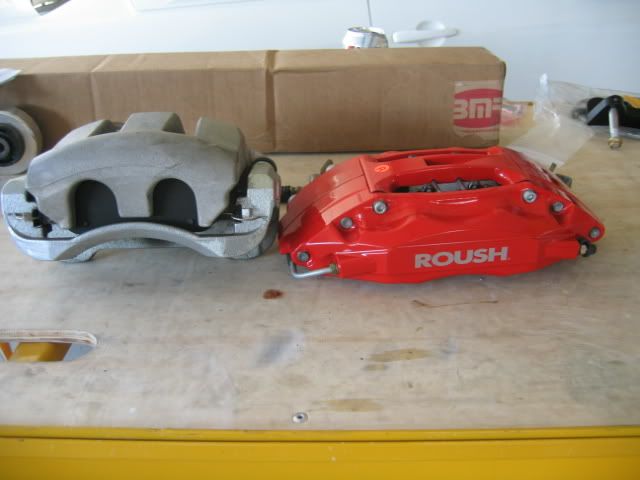

    here are the stock and new calipers comparison

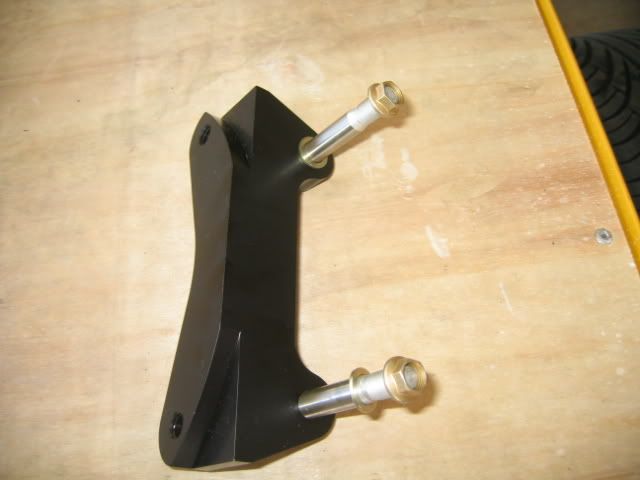

    Here's the caliper adapter bracket

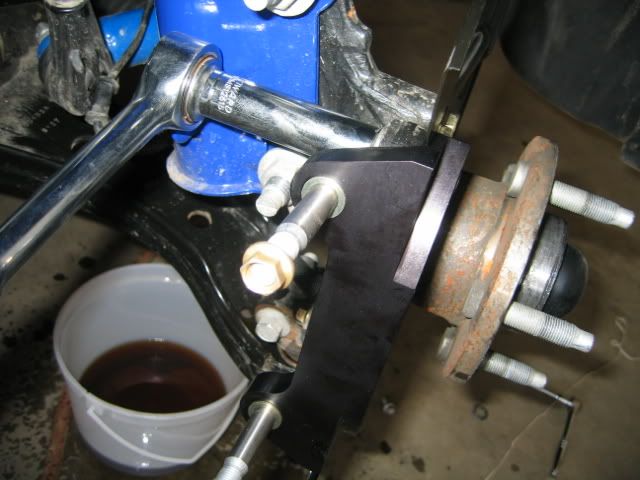

    Attached the new bracket using the stock bolts

  • #2
    Then installed new rotor


    I pre insatlled the braket that holds the new braided brake line before attaching bracket. Easier then when on the car.


    New banjo bolt with copperwashers 1 for each side of brakeline
    then intalled new caliper


    [IMG]http://i29.photobucket.com/albums/c259/toolttime/brakekit018.jpg
    [/IMG]
    new brake line has a bend to it goes inwards


    Thread stock brake line into new hose before attching bracket. Less likely to crossthread doing it first Then installed new hose bracket





    Had to rebend brake line a bit to fit in the stock clips


    Bled brakes using a clear hose with a check valve so you can do it by yourself. Also keeps the fluid from spaying all over Notice you have to bleed both sides. 2 pistons on each side of caliper

    job done



    Here the new look!!!

    Last edited by toolttime; 08-27-2006, 07:34 PM.

    Comment


    • #3
      You are awesome at detailed install with pics. Glad to see for sure


      BUY AMERICAN !!!!!!!!!!!!!!!!!!!!!!!!

      Comment


      • #4
        You need to print a book on How to.Awsome nice work!!!!

        ***** 2005 Roush Stage 2 (horsepower modified) *****
        2005 Driver X Roush, Driven by winner Erik Darnell, and now
        driven in memory of Lee Anne Darnell*****

        Comment


        • #5
          thank's
          Intalling the lc arms and l panhard bar this week so will have pics

          Comment


          • #6
            nice job in the brakes.

            Comment


            • #7
              mmmmmmm, those look fnsweet!!
              Jack Roush Classic #8 of 50

              Comment


              • #8
                where did you get the hose with the checkvalve to bleed the brake fluid?

                Comment


                • #9
                  That is great! Nice install!

                  Comment


                  • #10
                    I am way to impatient to take photos during an install. and the GF is never to be seen.

                    I guess I should find a friend here in Vegas that likes cars.

                    Great job for sure. Is there a How To here on FNSweet? Looks like we have our candidate to start it up.

                    Live as if you were to die tomorrow. Learn as if you were to live forever.
                    --Mahatma Gandhi

                    Comment


                    • #11
                      I'm here in Vegas and always willing to help out if you need a hand.
                      Wouldn't mind hooking up sometime and checking out your new S3.
                      Let me know
                      2005 SONIC BLUE ROUSH
                      ROUSHCHARGER*AUTOGRAPHED DASH/SUPERCHARGER*
                      EIBACH PRO KIT SPRINGS
                      20" BOSS 226's / NITTO 555 EXTREME'S
                      CUSTOM CARBON FIBER LEATHER INTERIOR
                      BILLIT GRILLE, INTERIOR ACCESSORIES
                      ALPINE DECK/V12 AMP and FOSGATE SPKRS
                      ROUSH SHORT THROW SHIFTER/KNOB
                      SEQUENTIAL TAIL LIGHTS*MRT CLEAR HOOD STRUTS*AUTOLITE HTO's

                      Comment


                      • #12
                        I am down to meet up for sure. What you got going on this Sunday. I have an event on Saturday so that is pretty much out.

                        I am also working on getting some guys from work to hit up fast laps. I need some people that can keep up. Not just get pissed when I pass 'em. I know that at least SS lives here as well.

                        Live as if you were to die tomorrow. Learn as if you were to live forever.
                        --Mahatma Gandhi

                        Comment


                        • #13
                          Wow great thread!! Those loook fnGreat! Are they the 14 inch rotors?

                          Comment


                          • #14
                            Originally posted by sigbrown1297
                            where did you get the hose with the checkvalve to bleed the brake fluid?
                            Napa auto parts. It is a called a brake bleed buddy and it works perfectectly

                            Comment


                            • #15
                              Originally posted by doggiedoc
                              Wow great thread!! Those loook fnGreat! Are they the 14 inch rotors?
                              yup 14" rotors 4 piston calipers
